Mitsubishi Classic AP 20 High Wall Heat Pump (Includes Installation) - Wellington

Load image into Gallery viewer, Mini AP 20 High Wall Heat Pump

Load image into Gallery viewer, Mitsubishi Classic AP 20 High Wall Heat Pump (Includes Installation) - Wellington

Mini AP 20 High Wall Heat Pump

$1,795.47

Premium Mitsubishi Mini AP 20 High Wall Heat Pump (Optional Wifi)

MSZ-AP20VGD

The Classic AP20 sets a new standard in super energy efficient heating and cooling. The AP20 is NZ's smallest high wall indoor unit and starting at a whisper quiet 21dBA, it's the perfect solution for bedrooms, home offices and hallways! With Dual Barrier Coating that prevents dust and dirt build-up on the inner surface, the Classic AP20 stays clean year-round; maximising efficiency and home comfort.

Cooling capacity 2.0 kW
Heating capacity 2.5 kW
NZ's Smallest High Wall Indoor Unit
Whisper Quiet
Dual Barrier Coating
Next Generation R32 EcoCore Technology
Blue Fin Condenser

Specifications

MSZ-AP20VGD // Classic AP 20 High Wall Heat Pump

Function: Cooling/Heating
Type: Single Split, Inverter
Capacity - Cooling: 2.0 kW
Capacity - Heating: 2.5 kW
Capacity - Cooling (min. - max.): 0.6 - 2.7 kW
Capacity - Heating (min. - max.): 0.5 - 3.5 kW
Power input - Cooling: 0.46 kW
Power input - Heating: 0.6 kW
Current - Cooling [In+Outdoor] (Rated): 2.60 A
Current - Heating [In+Outdoor] (Rated): 3.20 A
Energy Rating Residential
ZERL - Cooling (Cold/Mixed/Hot): 3.5 / 3.5 / 3.5
ZERL - Heating (Cold/Mixed/Hot): 2.0 / 2.5 / 3.0
TCSPF (Cold/Mixed/Hot): 5.29 / 5.15 / 5.50
HSPF (Cold/Mixed/Hot): 3.94 / 4.28 / 4.61
EER / COP: 4.35 / 4.17
AEER / ACOP: 4.31 / 4.14
Energy Rating Commercial
TCSPF (Cold/Mixed/Hot): 6.24 / 5.88 / 5.84
HSPF (Cold/Mixed/Hot): 4.10 / 4.40 / 4.60
Operation Range - Cooling: -10 / +46 degC
Operation Range - Heating: -15 / +24 degC

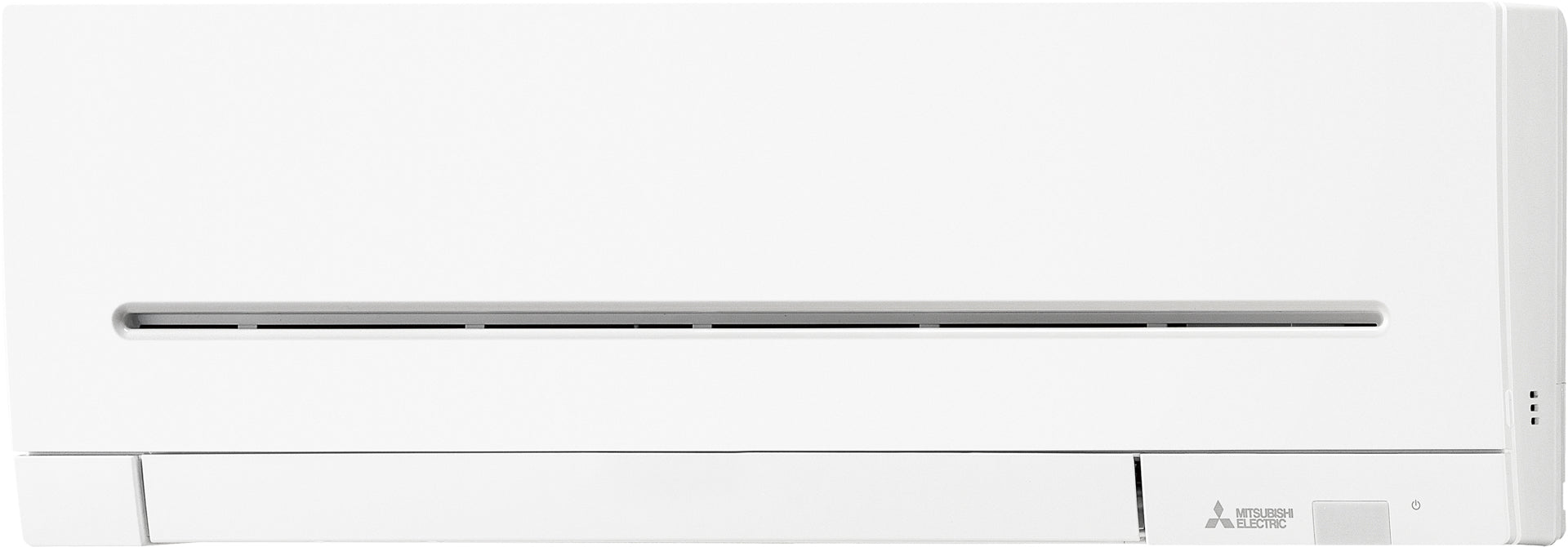

MSZ-AP20VGD-A1 - Wall Mounted Classic AP20 Indoor Unit - White

Function: Cooling/Heating
Type: Single Split, Inverter
Nominal Capacity
Capacity - Cooling: 2.0 kW
Capacity - Heating: 2.5 kW
Sound Level - Cooling (Low - Super High, dB(A)): 21 / 26 / 30 / 35 / 42
Sound Level - Heating (Low - Super High, dB(A)): 21 / 26 / 30 / 35 / 42
Air volume - Cooling (Super High, Litre/sec): 115
Air volume - Heating (Super High, Litre/sec): 122
Refrigerant: R32
Liquid pipe size (OD, mm): 6.35
Gas pipe size (OD, mm): 9.52
Max. pipe length (m): 20
Max. pipe height (m): 12
Power supply: 230V / Single Phase / 50/60 Hz
Dimensions (WxDxH, mm): 760 x 178 x 250
Weight: 8.2 kg

MUZ-AP20VG-A1 - R32 Inverter Outdoor Unit

Function: Cooling/Heating
Type: Single Split, Standard Inverter
Operation Range - Cooling: -10 / +46 degC
Operation Range - Heating: -15 / +24 degC
Sound Level - Cooling (dB(A)): 47
Sound Level - Heating (dB(A)): 48
Air volume - Cooling (Litre/sec): 115
Air volume - Heating (Litre/sec): 122
Power supply: Single phase, 230 V, 50/60Hz
Refrigerant: R32
Liquid pipe size (OD, mm): 6.35
Gas pipe size (OD, mm): 9.52
Max. pipe length (m): 20
Max. pipe height (m): 12
Dimensions (WxDxH, mm): 800 x 285 x 550
Weight: 31kg

Warranties

This product comes with a 5 Year manufacturer's warranty.

Conditions:

Install pricing is for a back-to-back installation only with a maximum pair coil use of 5m. Additional costs may apply based on in-home consultation.

This offer is only available for installations within the Wellington Region.

Additional costs may apply for commercial premises, or for residential building companies.
